ScanSnap outputs files as compressed color images. While file size vary depending on the document contents and other scanning conditions, refer to the tables below for the file sizes of compressed image data under different modes and compression rates.
-
File format:PDF
-
Compression rate:3
-
Document size:A4
-

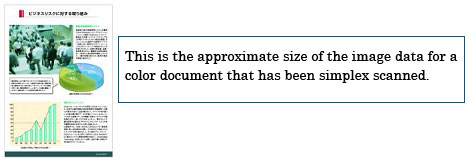

Document Image:
Color mode Imge quality Normal Better Best Excellent Color 246 364 645 1673 Gray 224 328 580 1833 Black and White 136 213 455 1300 (*1) High compression color
(Windows® only)123 164 125 N/A (*1)
In case of fi-5110EOX2 / fi-5110EOX / fi-5110EOXM, the file size is about 650.
[Note] (Windows®)
"Color high compression" is most effective when used with "Best" mode. Also, by setting the compression rate and color high compression like the ways explained below, you will get better results.
- File size can be reduced by using the compression rate (1 to 5) setting when scanning documents that contain pictures and diagrams.
- File size for documents containing much text that have been scanned in "Best" mode can be reduced in size by selecting color high compression.
