If multiple documents are scanned with a profile (scan settings) in which [Automatically detects the document type as "Documents", "Business Cards", "Receipts", or "Photos" and scans the document with the appropriate scan settings]*1 is specified for [Document type detection], some documents may be detected as a document type other than "Documents" (such as "Photos").
In this case, even if [Create a single PDF file from all sheets] is set with "Documents" selected for the document type, images created from incorrectly detected documents will be each saved as separate files rather than part of the single file created from correctly detected documents.
To avoid the above issue, change the setting for [Document type detection] to [All sheets will be scanned as documents] and set [PDF page split] to [Create a single PDF file from all sheets] by the following procedure.
*1 When [Automatically detects the document type as "Documents", "Business Cards", "Receipts", or "Photos" and scans the document with the appropriate scan settings] is specified, the document type is automatically detected based on the properties of the scanned document, such as paper size or character information.
[Windows]
■ Adding and configuring a profile in the [Add new profile] window
*The "Save documents" profile is used as an example.
- Click Windows [Start] menu --> [ScanSnap Home] --> [ScanSnap Home].
The main window of ScanSnap Home appears.

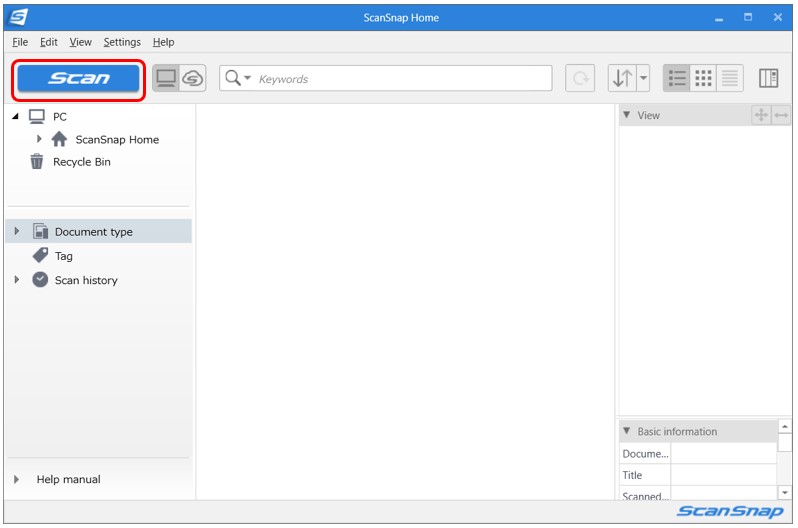

- Click the [Scan] button in the top left corner of the window.
The [ScanSnap Home - Scan] window appears.

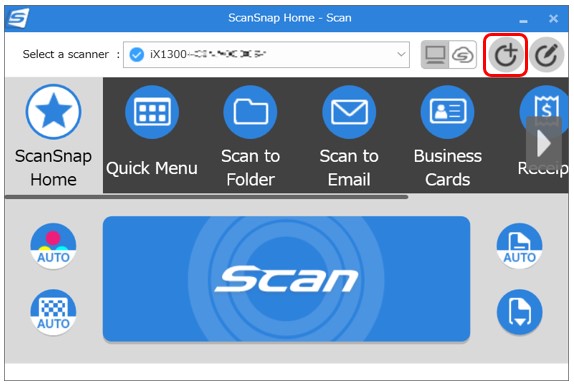

- Click the [Add new profile] button in the top right corner of the window.
The [Add new profile] window is displayed.

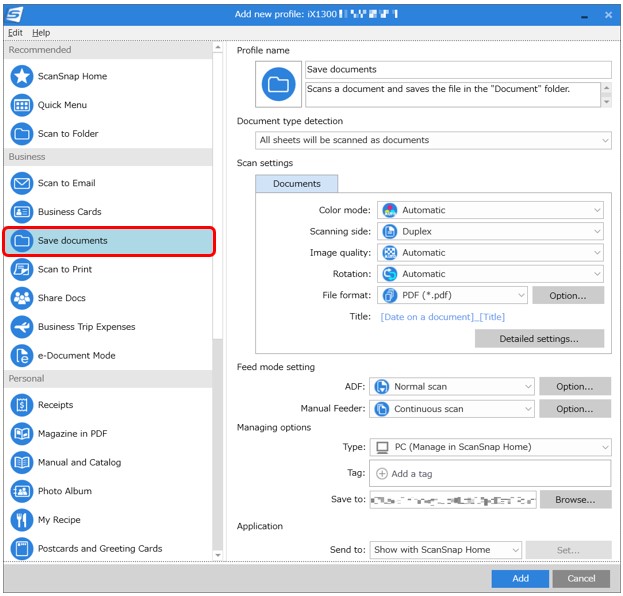

- Select [Save documents] from the Business category on the left.

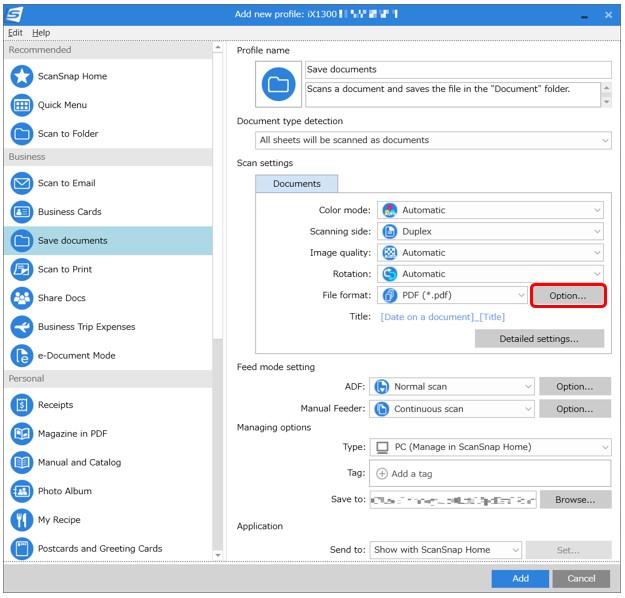

- Make sure that [PDF(*.pdf)] is selected for [File format] in [Scan settings] on the right, then click the [Option] button next to the selected setting.
The [PDF file option] dialog is displayed.

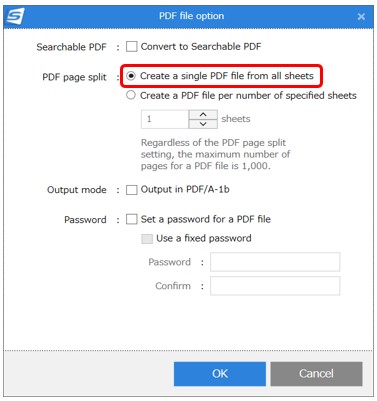

- Make sure that [Create a single PDF file from all sheets] is selected for [PDF page split].
Click the [OK] button to close the dialog.

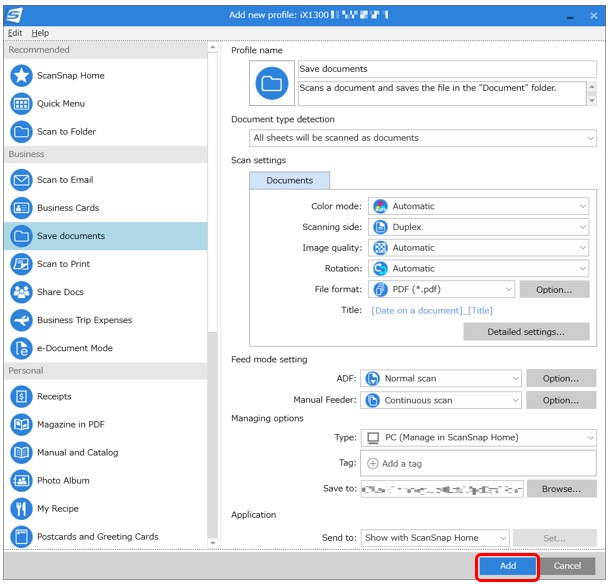

- Click the [Add] button in the lower right corner of the window.
- The [Save documents] profile is added to the [ScanSnap Home - Scan] window.

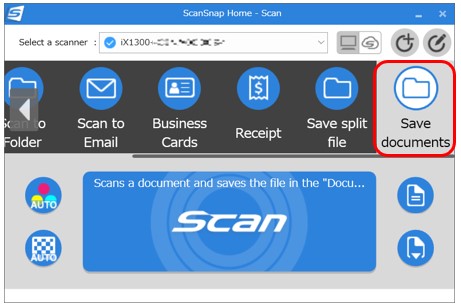

- In the [ScanSnap Home - Scan] window, select the [Save documents] profile, and click the [Scan] button.
Confirm that the images created from multiple scanned documents are saved as a single file (PDF).
This completes the procedure.
[Windows]
■ Editing an exiting profile
- Click Windows [Start] menu --> [ScanSnap] --> [ScanSnap Home].
The main window of ScanSnap Home appears.
- Click the [Scan] button in the top left corner of the window.
The [ScanSnap Home - Scan] window appears.

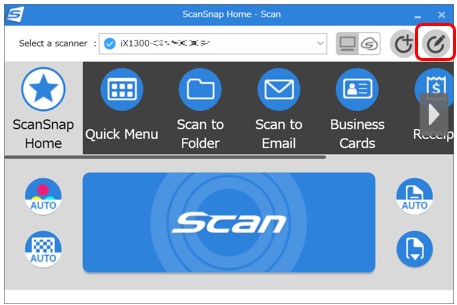

- In the [ScanSnap Home - Scan] window, click the [Edit profiles] button in the top right corner.
The [Edit profiles] window is displayed.

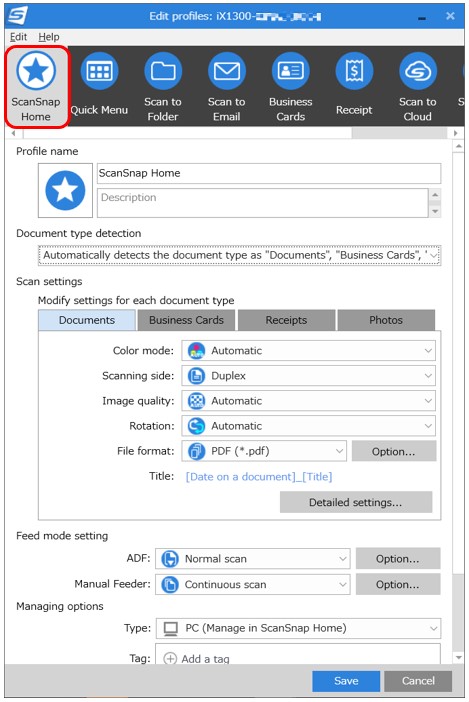

- Select the profile in use from the profile list.
*The "ScanSnap Home" profile is used as an example.

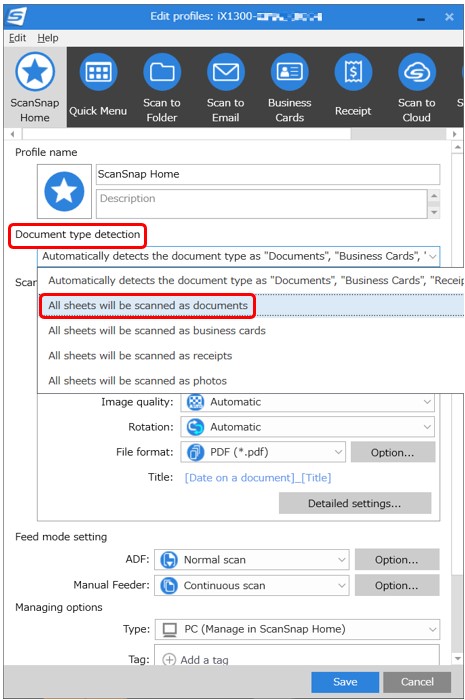

- Select [All sheets will be scanned as documents] for [Document type detection].
Confirm that the setting for [Document type detection] is changed to [All sheets will be scanned as documents].

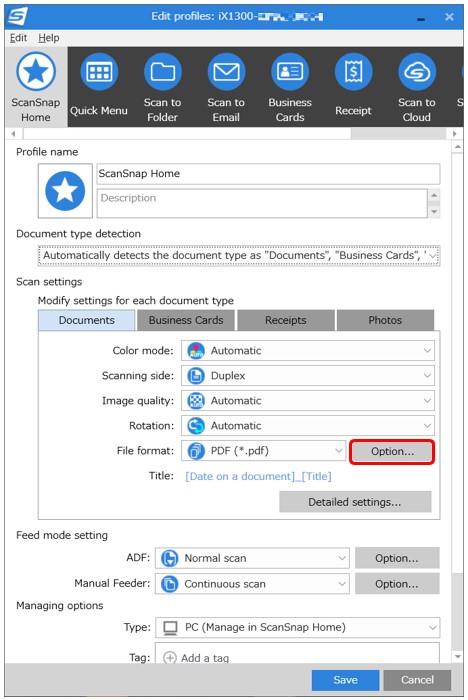

- Click the [Option] button next to [File format] in [Scan settings].
The [PDF file option] dialog is displayed.
- Select [Create a single PDF file from all sheets] for [PDF page split], then click the [OK] button.
The [Edit profiles] window will be displayed again.

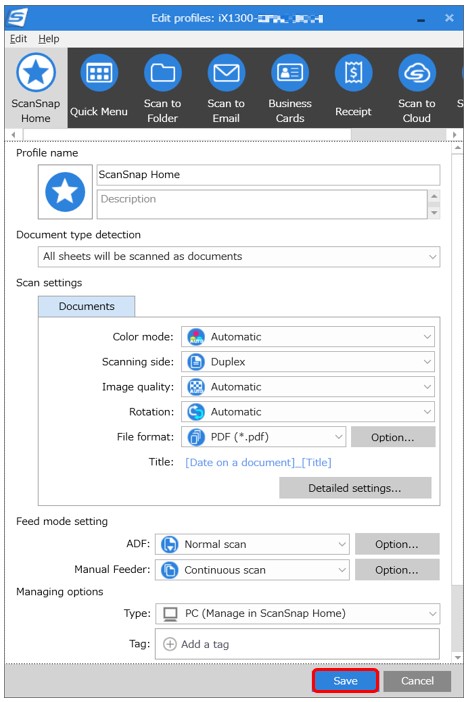

- Click the [Save] button in the lower-right.

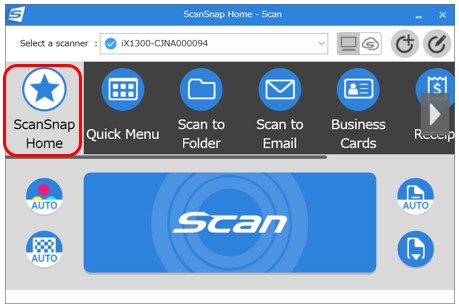

- Select the "ScanSnap Home" profile with the changed settings in the [ScanSnap Home - Scan] window, then perform a scan.
Confirm that the images created from multiple scanned documents are saved as a single file (PDF).
This completes the procedure.
[macOS]
■ Adding and configuring a profile in the [Add new profile] window
*The "Save documents" profile is used as an example.

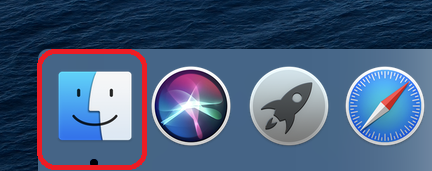

- Click Finder in the Dock.
The Finder window appears.
- Click the [ScanSnap Home] icon in the list of applications to start up ScanSnap Home.
The main window of ScanSnap Home appears.

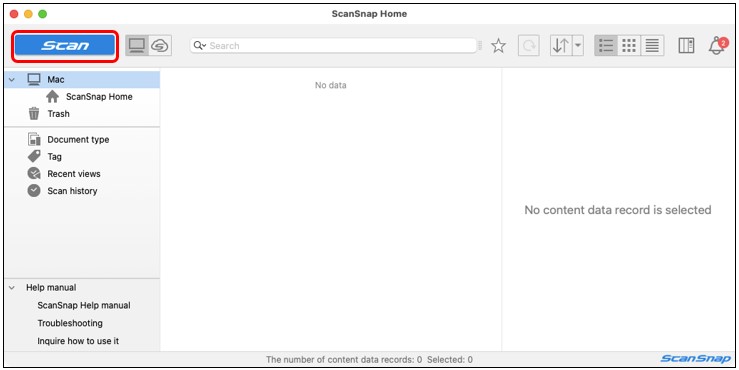

- Click the [Scan] button in the top left corner of the window.
The [ScanSnap Home - Scan] window appears.

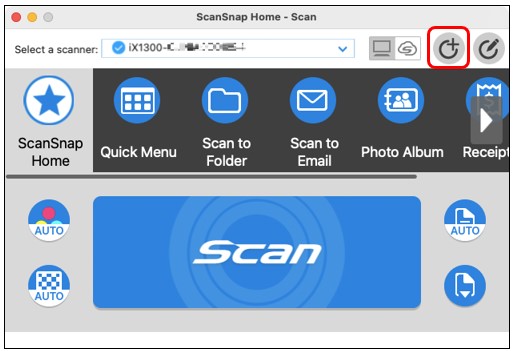

- Click the [Add new profile] button in the top right corner of the window.
The [Add new profile] window is displayed.

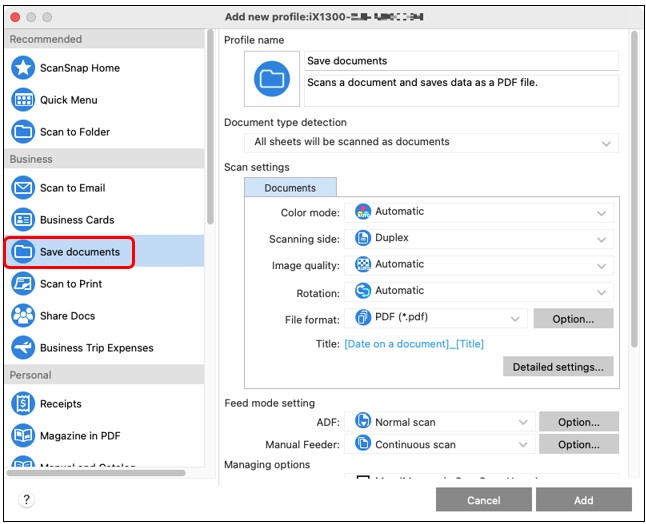

- Select [Save documents] from the Business category on the left.

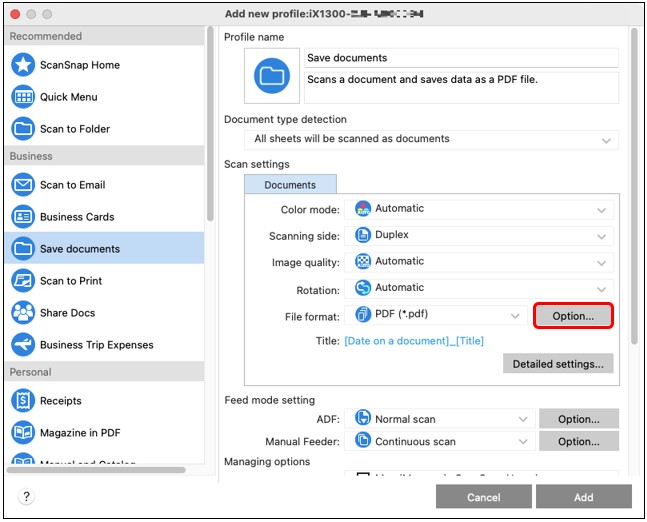

- Make sure that [PDF(*.pdf)] is selected for [File format] in [Scan settings] on the right, then click the [Option] button next to the selected setting.
The [PDF file option] dialog is displayed.
- Make sure that [Create a single PDF file from all sheets] is selected for [PDF page split].
Click the [OK] button to close the dialog.

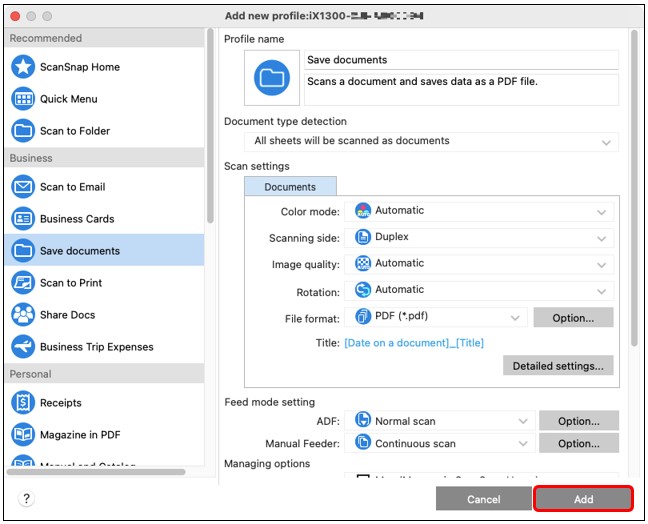

- Click the [Add] button in the lower-right.
- The [Save documents] profile is added to the [ScanSnap Home - Scan] window.

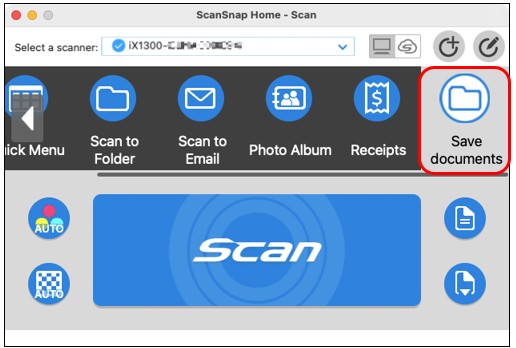

- In the [ScanSnap Home - Scan] window, select the [Save documents] profile, and click the [Scan] button.
Confirm that the images created from multiple scanned documents are saved as a single file (PDF).
This completes the procedure.
- Click Finder in the Dock.
The Finder window appears.
- Click the [ScanSnap Home] icon in the list of applications to start up ScanSnap Home.
The main window of ScanSnap Home appears.
- Click the [Scan] button in the top left corner of the window.
The [ScanSnap Home - Scan] window appears.

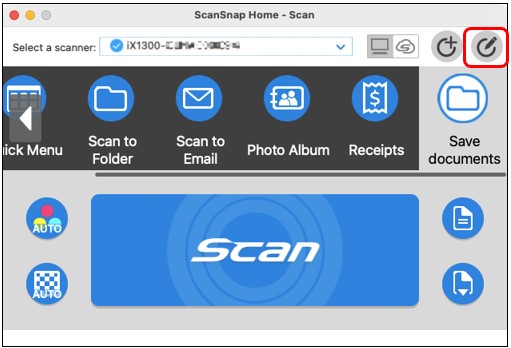

- In the [ScanSnap Home - Scan] window, click the [Edit profiles] button in the top right corner.
The [Edit profiles] window is displayed.

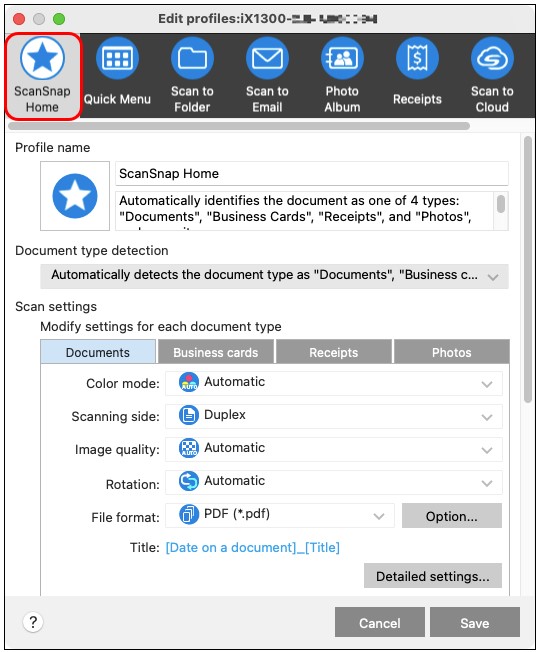

- Select the profile in use from the profile list.
*The "ScanSnap Home" profile is used as an example.

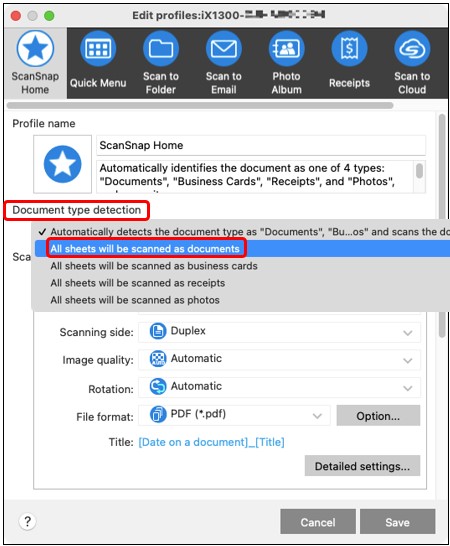

- Select [All sheets will be scanned as documents] for [Document type detection].
Confirm that the setting for [Document type detection] is changed to [All sheets will be scanned as documents].

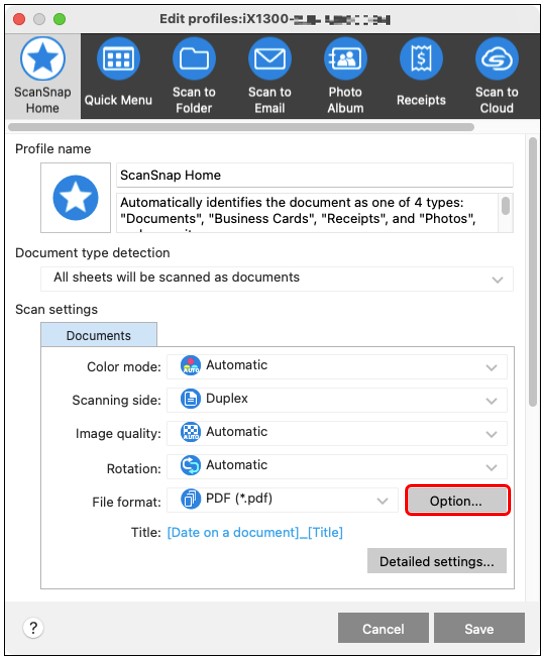

- Make sure that [PDF(*.pdf)] is selected for [File format] in [Scan settings], then click the [Option] button next to the selected setting.
The [PDF file option] dialog is displayed.

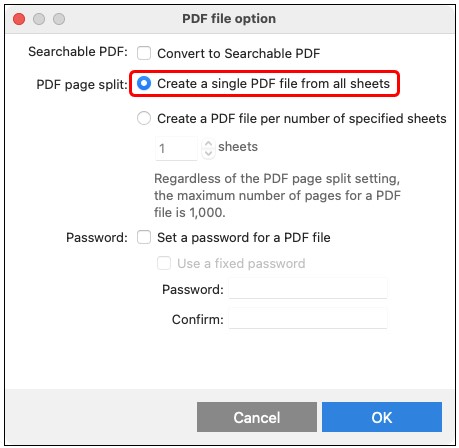

- Select [Create a single PDF file from all sheets] for [PDF page split], then click the [OK] button.

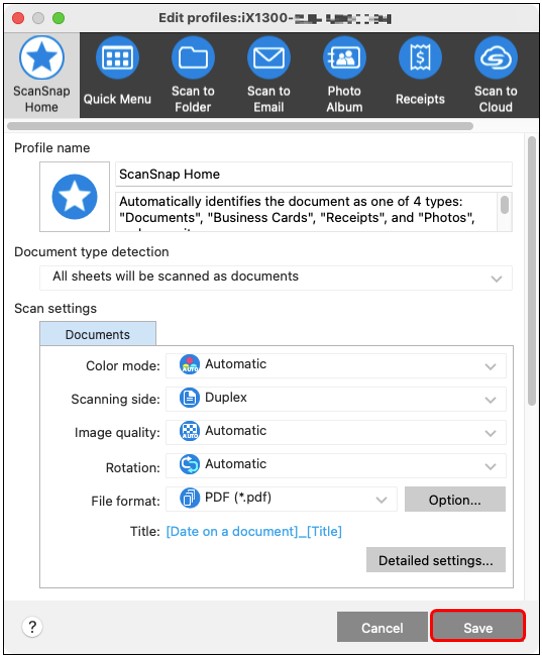

- Click the [Save] button in the lower-right.

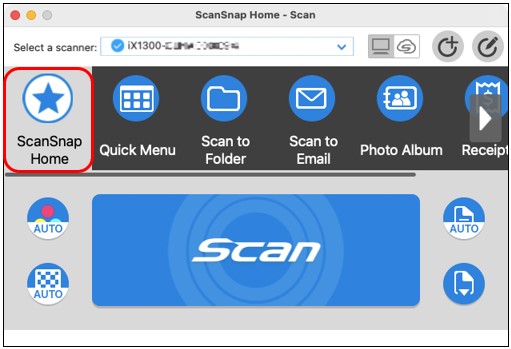

- Select the "ScanSnap Home" profile with the changed settings in the [ScanSnap Home - Scan] window, then perform a scan.
Confirm that the images created from multiple scanned documents are saved as a single file (PDF).
This completes the procedure.
