The scanned image is incorrectly rotated.

ScanSnap Home has an automatic rotation function configured by default.

This function automatically rotates the image created when you scan a document sideways or upside down to output it with the correct orientation.

Since the automatic rotation function corrects the orientation of the image based on the character strings in the document, the page orientation may not be recognized appropriately when any of the following types of documents is scanned.

Documents with many extremely large or small characters Documents on which pitches between lines or characters are extremely narrow, or characters are overlapped Documents with many characters contacting underlines or borders Documents with many outlined or decorated characters Example: Embossed or outlined characters Documents with many photographs or figures and few characters Documents with characters on an unevenly colored background or a patterned background Example: Shaded characters/characters overlapping illustrations or diagrams Documents with characters printed in various directions such as drawings Documents written using only capital letters Documents with handwritten characters Skewed documents Documents in a language other than the languages supported for searchable PDF files Documents with complex layouts Documents with a large amount of image noise Documents with faint characters Documents with faded characters

[Procedure 1]

1. Start ScanSnap Home  and click the [Scan] button in the top left corner of the window.
   Note: For details, refer to “How can I launch ScanSnap Home?” .


2. Select the profile that you are using from the profile list.


3. Click the icon (the [Edit profiles] button) in the top right corner of the window.

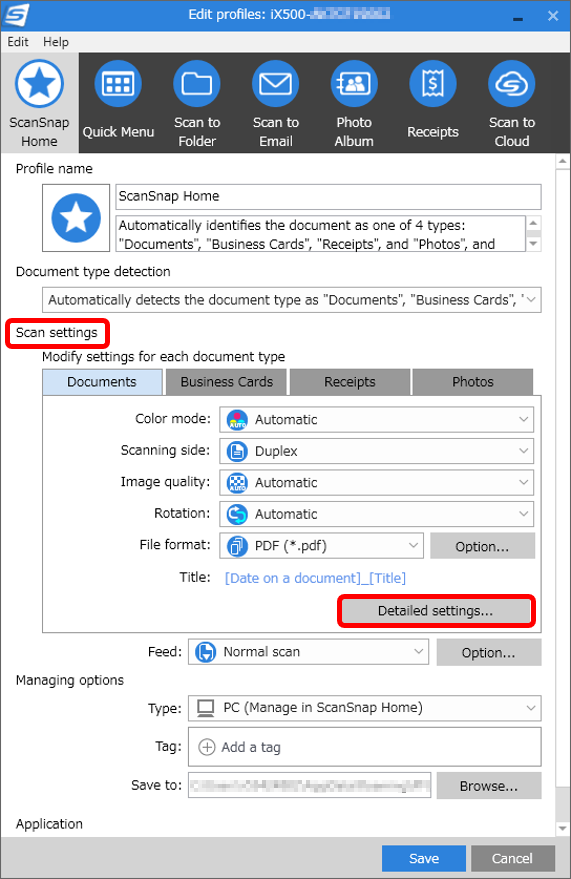

4. Click the [Detailed settings] button in the [Scan settings] to display the [Detailed settings] window.

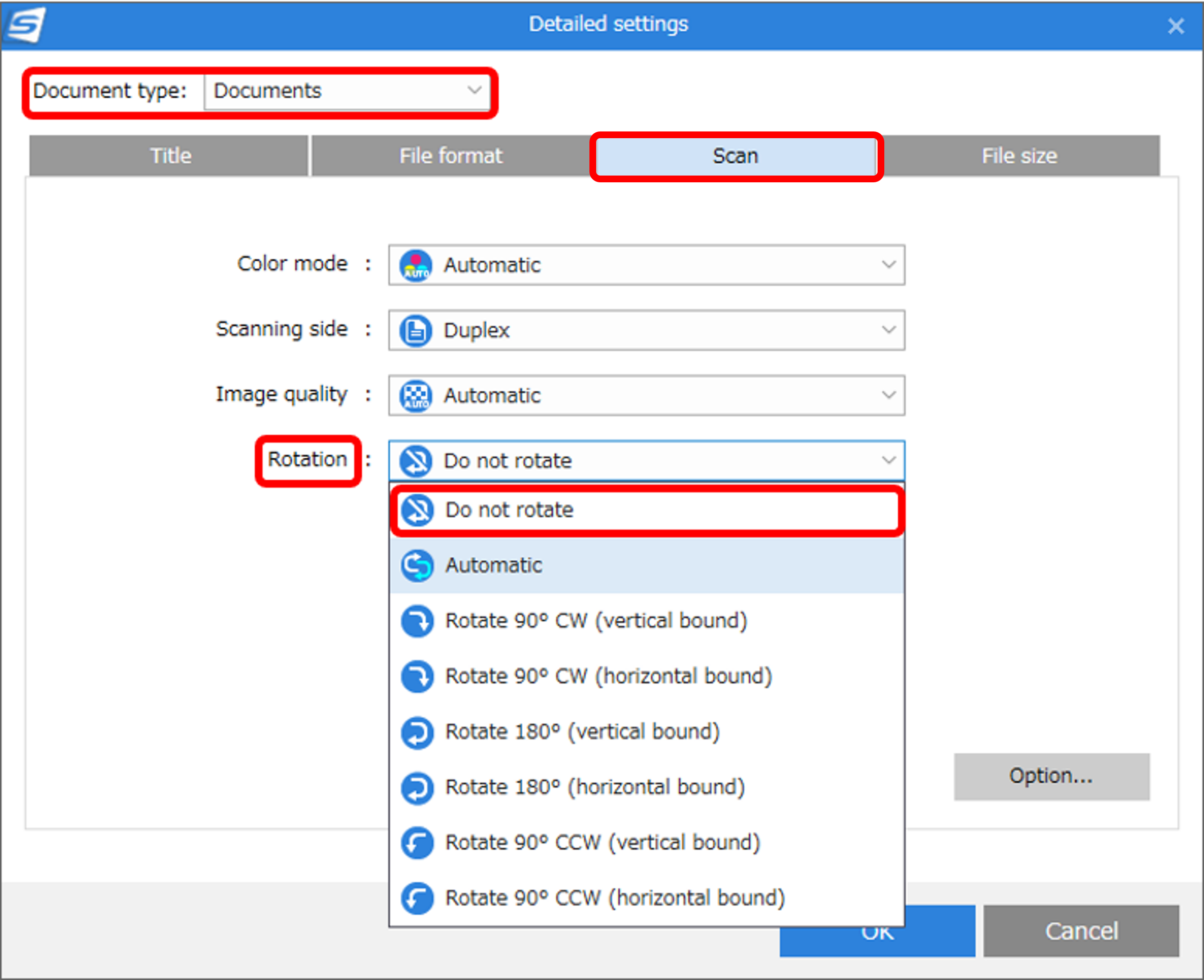

5. Select the [Do not rotate] for the [Rotation] in the [Scan] tab.
   Note: This setting needs to be configured for each document type.



6. After the setting is complete, click [OK] to close [Detailed settings], then click [Save] to close the [Edit profiles] window.

[Procedure 2]

1. Start ScanSnap Home  and click the [Scan] button in the top left corner of the window.
   Note:For details, refer to “How can I launch ScanSnap Home?” .

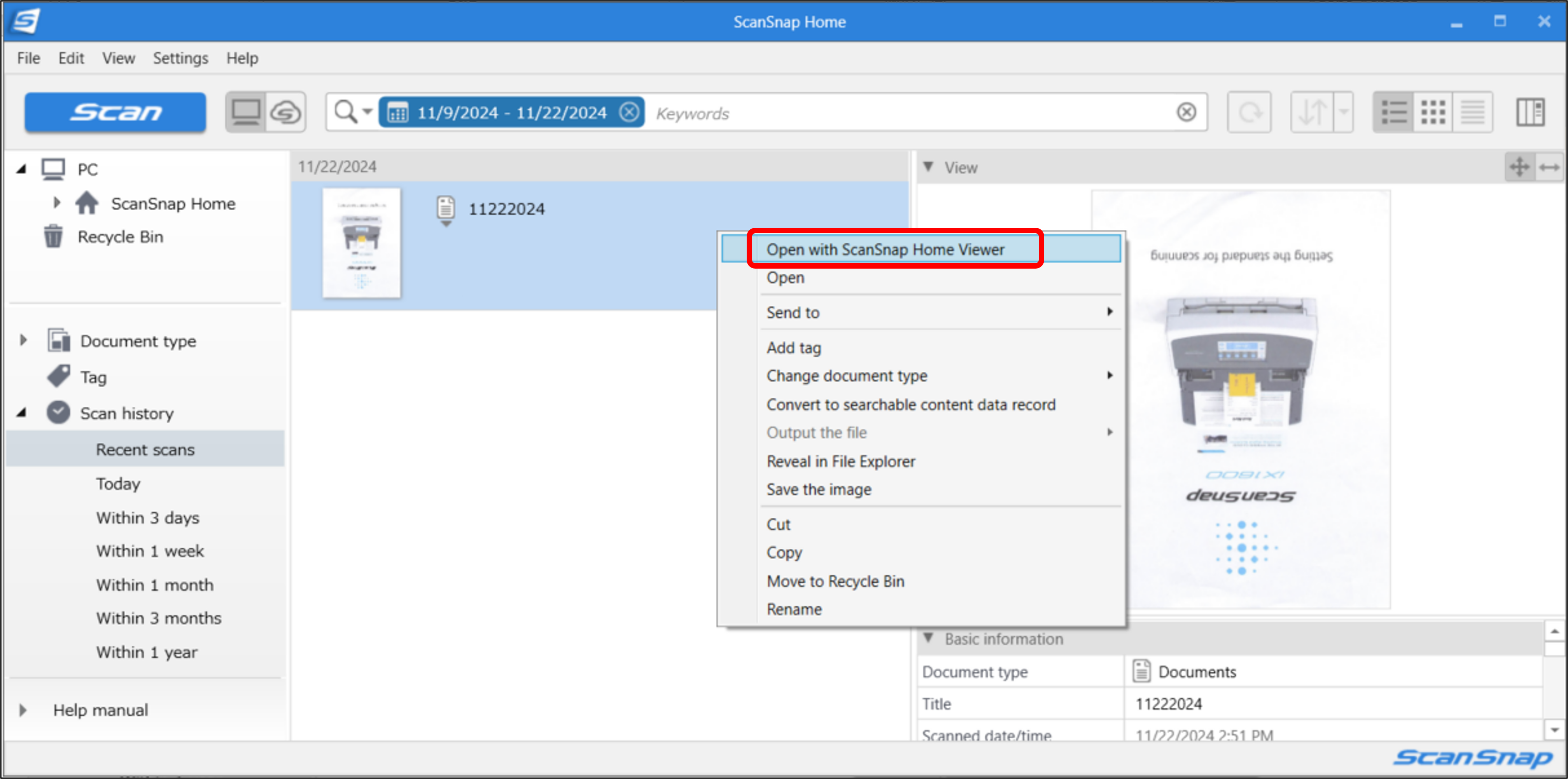

2. Right-click on the target PDF file and click [Open with ScanSnap Home Viewer].
   The [Viewer] window appears.

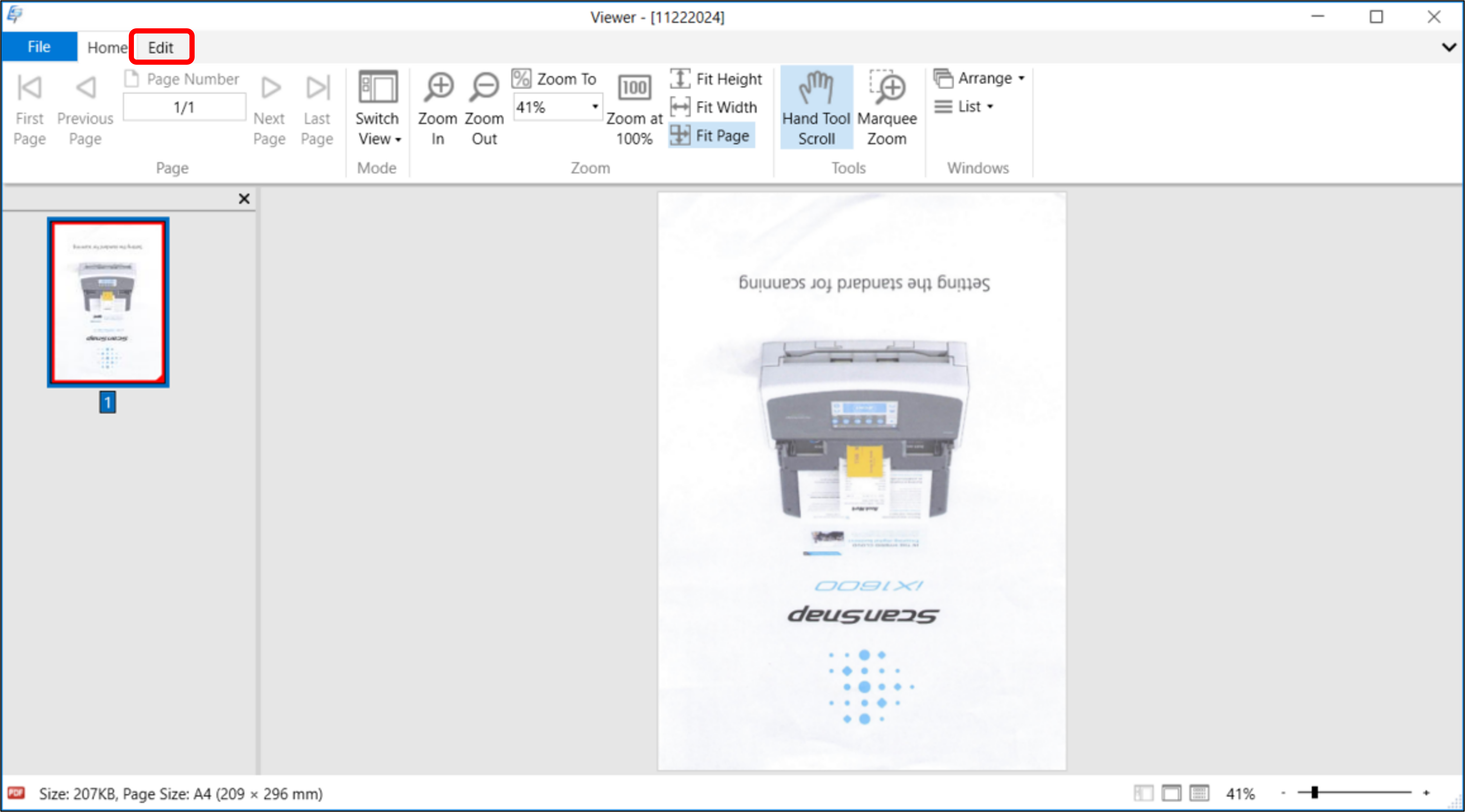

3. Click [Edit].
   Note: An upside-down file is used as an example.

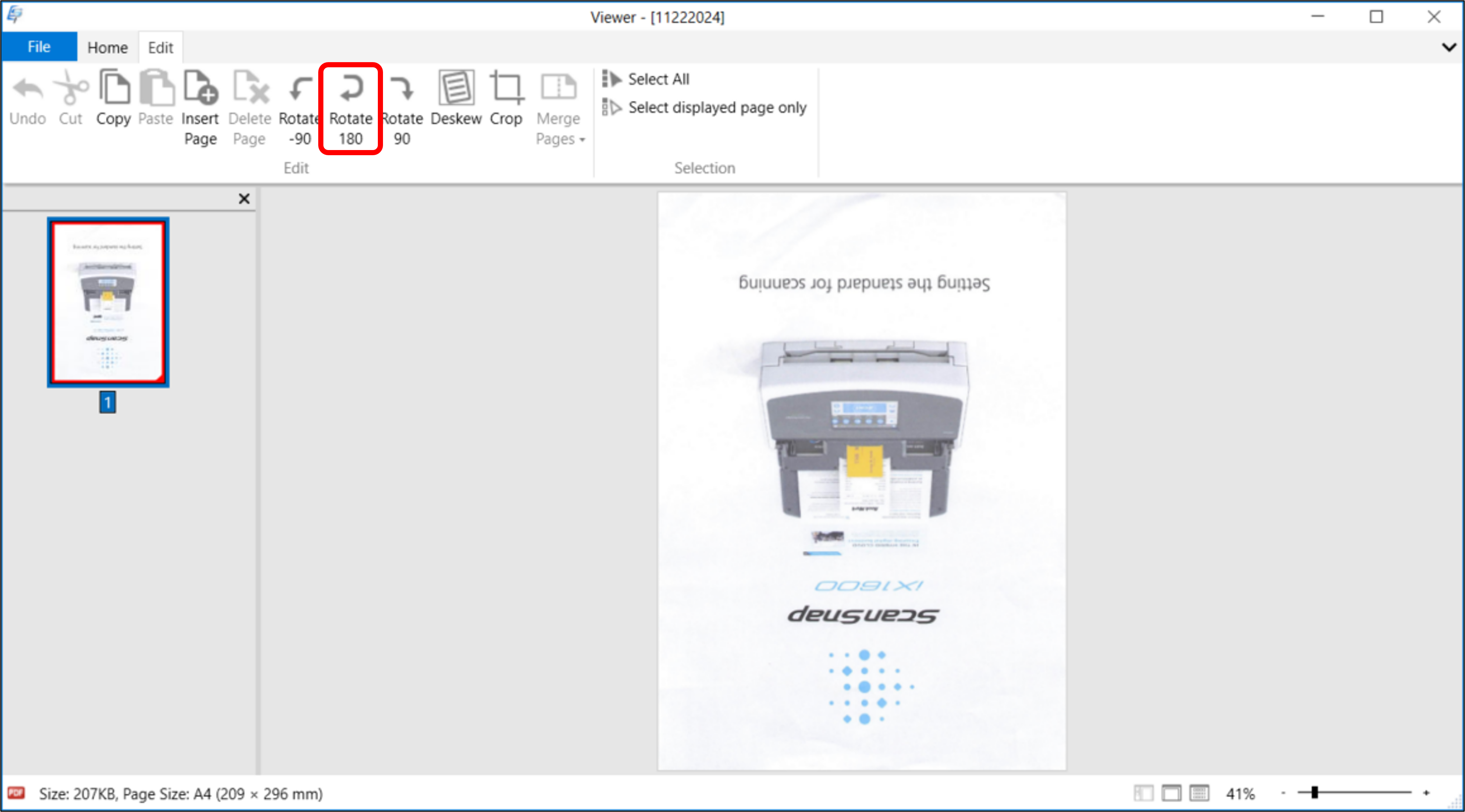

4. Click [Rotate 180°].



5. Confirm that it has been rotated to the normal orientation.

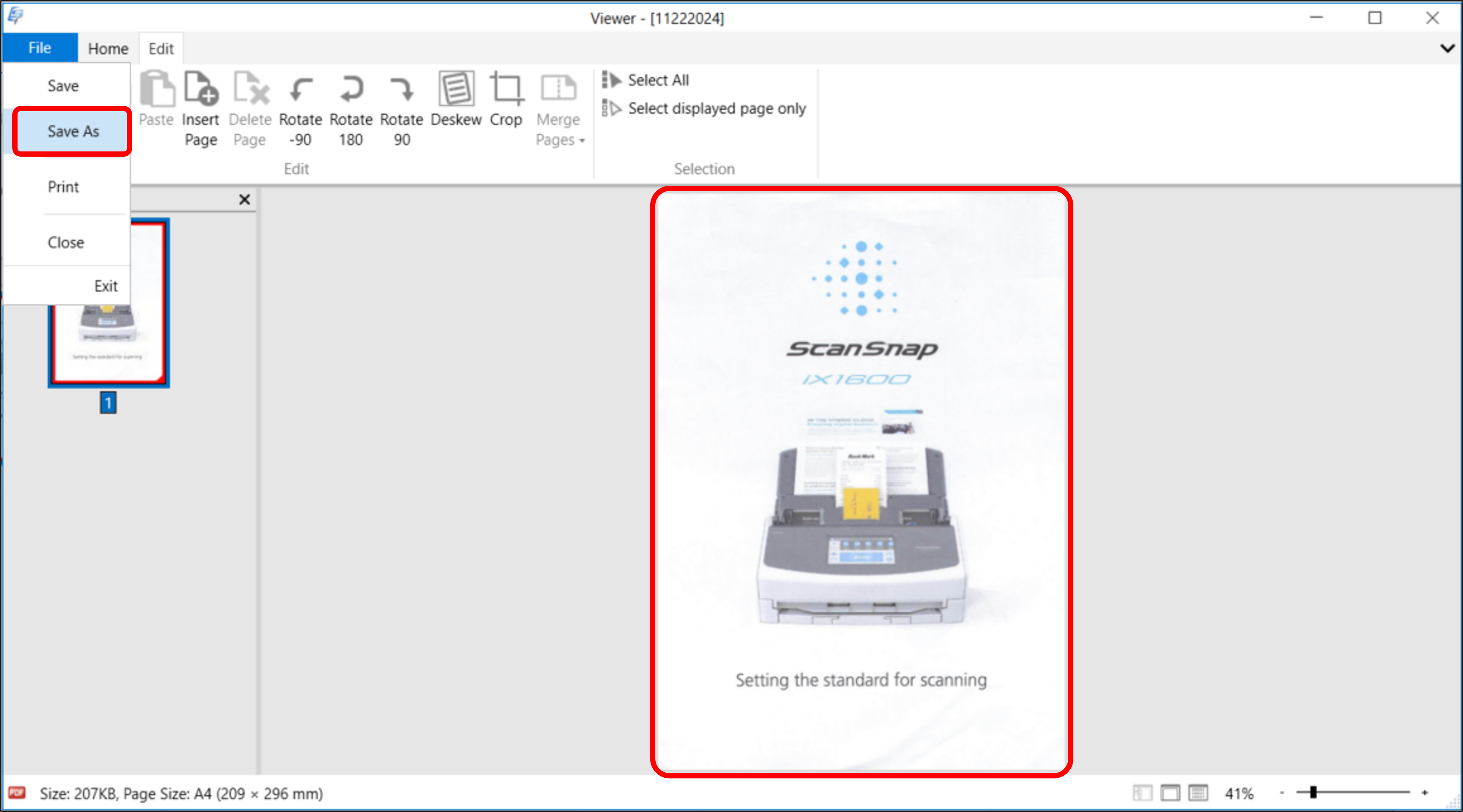

   Click [Save] to save the file.


Note: To check the rotation operation in the video, refer to "How to use ScanSnap Home Viewer for Windows".
