The following explains the functional differences when saving scan data using the iX2500* / iX1600, comparing saving via a computer versus saving directly to a network folder, not only Windows file sharing but also NAS file sharing system.
* Firmware version must be 0H00 or later.
The table below lists the items by profile settings screen.
[HELP]
[Document type detection]
Via a computer |
Directly to a network folder (NAS) |
||
iX2500 |
iX1600 |
||
Auto |
✓ |
N/A |
N/A |
Document |
✓ |
✓ (*1) |
✓ (*1) |
Business card |
✓ |
N/A |
N/A |
Receipt |
✓ |
N/A |
N/A |
Photo |
✓ |
N/A |
N/A |
*1: Text information cannot be extracted from business cards or receipts. Additionally, there are no photo correction settings available.
[Scan settings]
Via a computer |
Directly to a network folder (NAS) |
||
iX2500 |
iX1600 |
||
Image quality > Excellent |
✓ |
N/A |
N/A |
Rotation > Automatic |
✓ |
✓ |
N/A |
✓ |
N/A (*1) |
N/A (*1) |
|
✓ |
N/A (*2) |
N/A (*2) |
|
✓ |
N/A (*2) |
N/A (*2) |
|
✓ *3 |
N/A |
N/A |
|
✓ |
N/A |
N/A |
|
✓ |
N/A |
N/A |
|
✓ |
N/A |
N/A |
|
*1: There is no setting to combine all pages into a single PDF file or to create a PDF file for each set number of pages.
*2: There is no option to select the "Language of document".
*3: Sequential numbering can only be set when the “Managing Option” > ”Type” is “PC (Scan to file)”.
[Feed settings]
[HELP]
Via a computer |
Directly to a network folder (NAS) |
||
iX2500 |
iX1600 |
||
| Add custom document size | ✓ |
N/A (*1) |
N/A (*1) |
| Carrier sheet settings | ✓ |
✓ |
N/A (*2) |
| Multifeed detection | ✓ (*3) |
✓ (*4) |
✓ (*4) |
| Merge both sides of an image | ✓ |
N/A |
N/A |
| Reduce vertical streaks | ✓ |
✓ |
N/A |
*1: No “Customize” settings are available.
*2: Carrier sheets (A3/Photo) are not supported.
*3: Can be set ON/OFF.
*4: No setting option. Always ON.
[Additional notes for saving directly to a network folder such as NAS]
- When "Auto" is selected for Color mode, scanning will be in color or grayscale.
It will not scan in black and white. - No application can be configured for the [Send to] option.

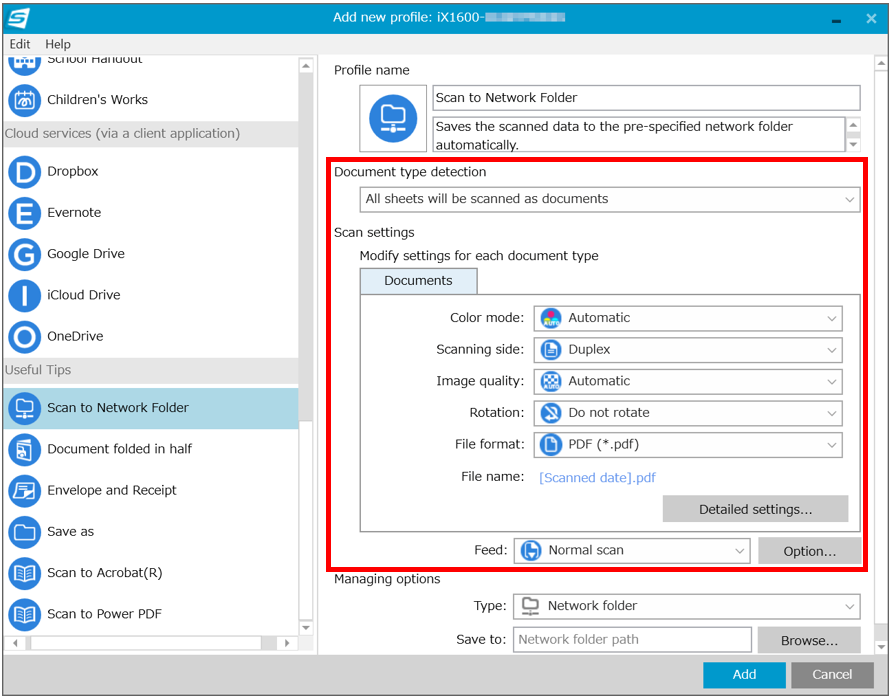

[Example of Scan to Network Folder Profile]
Note: For details, see Can I save images to a network folder such as NAS?.
