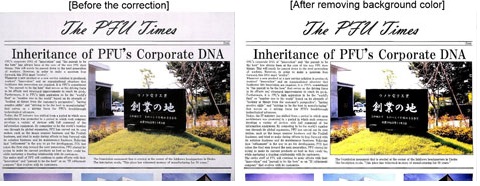

You can remove unnecessary background color from newspaper with ScanSnap Organizer Viewer.
This function is available in the ScanSnap Organizer Viewer (V5.1L41 or later) for Windows®.
Attention:
The following function can use only when using ScanSnap SV600:
[Remove Newspaper Background Color]
Operations Procedure
-

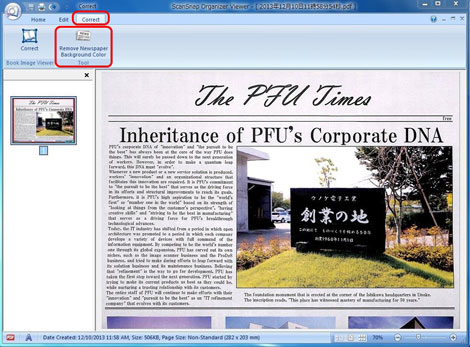

Select the file you would like to correct from the thumbnails in ScanSnap Organizer, and open it with the "Organizer Viewer".
-
Click [Correct] tab and press [Remove Newspaper Background Color] button.
Tips for removing background color:
- A shadow created by the wrinkles of newspaper may still remain. Please eliminate
the shadow by smoothing out the wrinkles of the document when you scan. - If you tick the [Thicken color images] checkbox in the [Image Quality] tab that is displayed by pressing the [Option] button under the [Scanning mode] tab in the ScanSnap setup dialog box, the background color may not be removed completely. Please uncheck the [Thicken color images] checkbox when you use [Remove Newspaper Background Color] function.
- Please specify the following settings in ScanSnap setup dialog box of ScanSnap Manager before scanning:

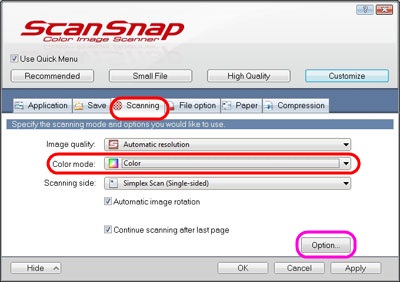

[Scanning] tab:- Color mode: [Color] or [Gray]
- Option (If you selected the [Color] in the [Color mode].)

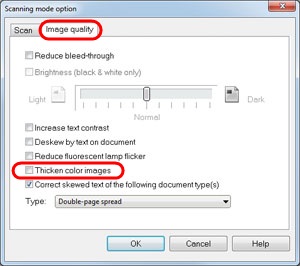

Scanning mode option dialog box
[Image quality] tab: Clear the "Thicken color images" checkbox
Note:
The [Remove Newspaper Background Color] function may not completely remove the background color when the "Thicken color images" checkbox in the [Image Quality] tab of the [Scanning mode option] dialog box is ticked. To open the [Scanning mode option] dialog box, press the [Option] button in the [Scanning mode] tab.
- Color mode: [Color] or [Gray]

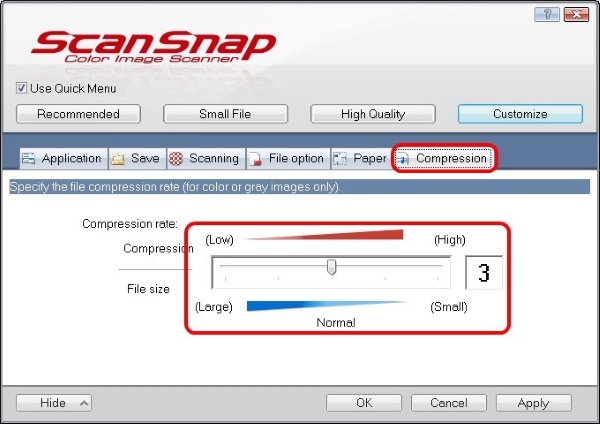

[Compression] tab:
- Compression rate: [3]
